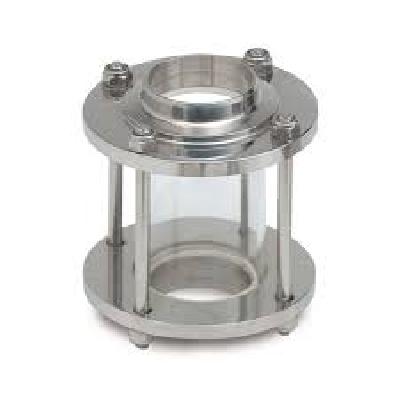

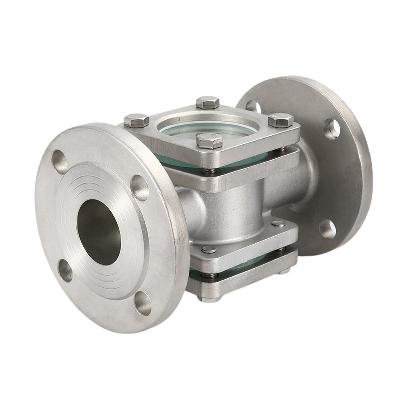

The Sight Glass Indicator is a type of industrial instrument used for visual monitoring of the flow of liquids in pipes and vessels. It provides a clear view of the liquid level, allowing operators to easily detect any blockages or issues in the system.
Where To Use Sight Glass Indicator
Suitable for use in various industrial processes, including chemical processing, oil and gas refineries, and power plants.
Recommended for applications where visual monitoring of liquid flow is critical, such as in pipelines, tanks, and reactors.
Key Features Of Sight Glass Indicator
Easy-to-read sight glass allows for clear visual monitoring of liquid flow.
Durable construction ensures long-term performance in harsh industrial environments.
Wide range of materials and connection types available to suit various applications.
How To Use Sight Glass Indicator
Install the sight glass indicator in-line with the process piping, ensuring clear visual access.
Maintain regular inspections to ensure proper functioning and cleanliness of the instrument.
Ensure adequate lighting is provided for optimal visibility during operation.
How Sight Glass Indicator Is Manufactured
The Sight Glass Indicator is manufactured using high-quality materials, including glass and metal components. The manufacturing process involves precise machining and assembly to ensure accurate dimensions and reliable performance.
Technical Specification Of Sight Glass Indicator
Material:
Glass
Shape:
Cylindrical
Size:
Diameter: 2 inches, Length: 10 inches
Connection Type:
Flanged
The technical specifications of the Sight Glass Indicator provide a comprehensive overview of its design and performance capabilities. The use of high-quality glass materials ensures durability and resistance to corrosion, while the cylindrical shape provides optimal visibility during operation. The flanged connection type allows for easy installation and maintenance.
Description Of Sight Glass Indicator
The Sight Glass Indicator is a simple yet effective instrument for visual monitoring of liquid flow in industrial processes. Its durable construction and easy-to-read design make it an ideal choice for various applications, from chemical processing to oil and gas refineries.
Related Products & Synonyms Of Sight Glass Indicator
The Sight Glass Indicator is often used in conjunction with other instruments, such as flow meters and pressure gauges, to provide a comprehensive monitoring system for industrial processes.
