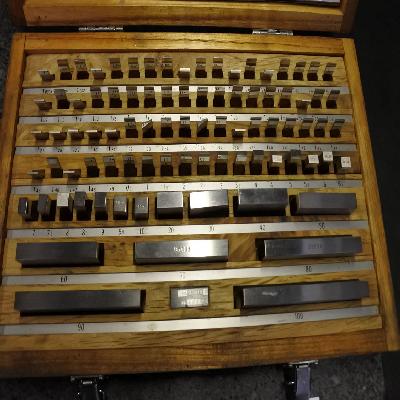

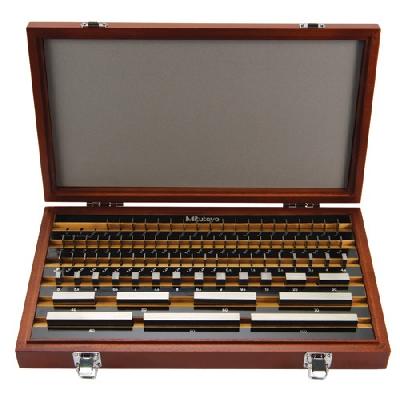

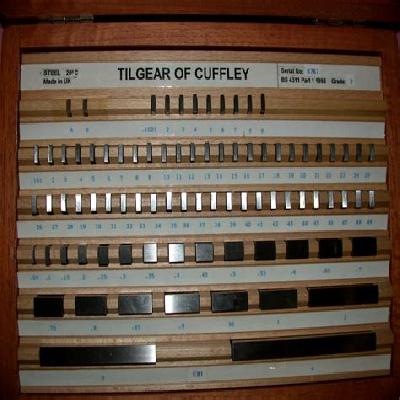

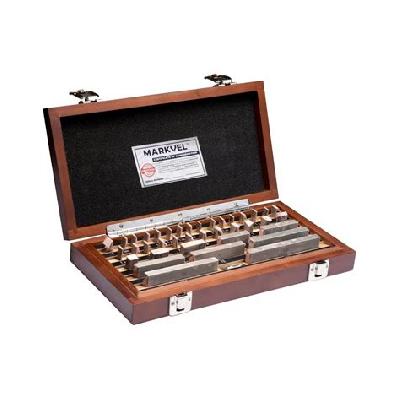

A slip gauge, also known as a gauge block set or slip gage, is a precision measuring instrument used in various industries for accurate measurements of lengths and sizes. It consists of a series of flat blocks made from materials with precise dimensions and surface finishes.
Where To Use Slip Gauge
Slip gauges are commonly used in various industries, including machining, tooling, and quality control. They can be applied in different settings such as workshops, laboratories, and production lines for accurate measurement and verification of parts.
Key Features Of Slip Gauge
High precision and accuracy for precise measurements
Made from durable materials with precise surface finishes
Available in various lengths and thickness ranges to suit different applications
Easy to use and handle due to its compact design
How To Use Slip Gauge
Select the appropriate slip gauge block according to the measurement requirement
Carefully place the block onto the workpiece or measuring surface
Verify the measurement using a precision instrument, such as a micrometer or caliper
Record and document the measurement result for future reference
How Slip Gauge Is Manufactured
Slip gauges are manufactured using high-precision techniques and machinery to ensure accurate dimensions and surface finishes. The process involves cutting, grinding, and polishing of the materials to achieve the required tolerances.
Technical Specification Of Slip Gauge
Material:
High-carbon steel or other precision materials
Length:
Available in various lengths, typically up to 300 mm
Surface Finish:
Highly polished surfaces for precise measurements
Brand:
Leading manufacturers such as Mitutoyo, Starrett, or others
Thickness Range:
Available in various thickness ranges, typically from 0.1 mm to 10 mm
The technical specification of a slip gauge is critical for ensuring accurate measurements in various applications. The material, length, surface finish, brand, and thickness range are all important factors that contribute to the precision and reliability of the instrument.
Description Of Slip Gauge
A slip gauge is a precision instrument used for accurate measurements of lengths and sizes in various industries. It consists of a series of flat blocks made from materials with precise dimensions and surface finishes.
Related Products & Synonyms Of Slip Gauge
The slip gauge is related to other precision measuring instruments, such as micrometers and calipers. Its synonyms include:
