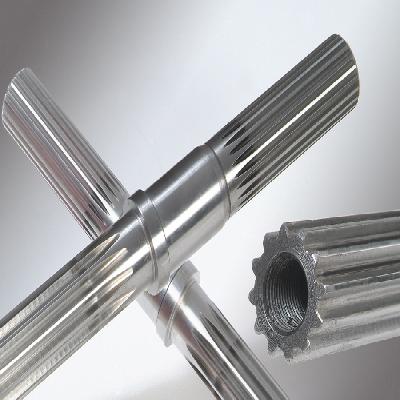

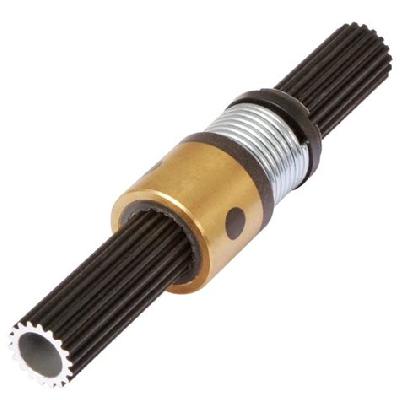

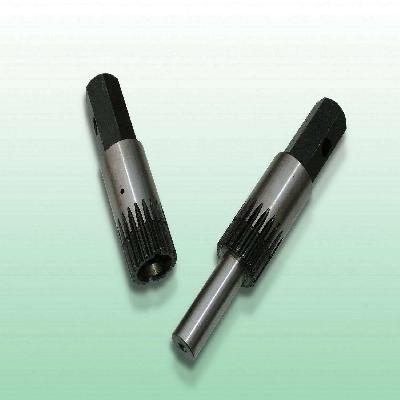

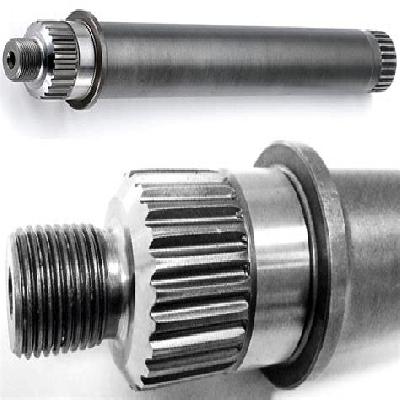

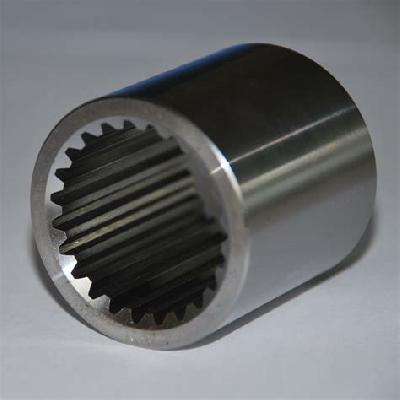

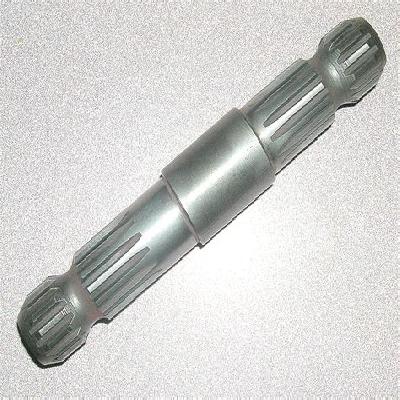

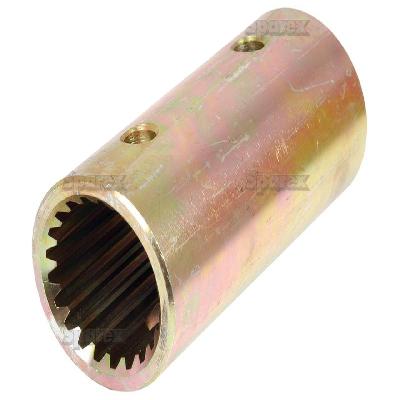

Spline shaft, also known as splined shaft, is a type of shaft used in various industrial applications. It features a series of teeth or grooves that provide a secure connection between the shaft and other components. This design allows for increased strength and durability compared to standard shafts.
Where To Use Spline Shaft
Spline shafts are commonly used in power transmission systems, such as gearboxes and speedometers.
They are also found in industrial machinery, including printing presses and textile machines.
In addition, spline shafts are used in the automotive industry for various applications, including axle shafts and drive shafts.
Key Features Of Spline Shaft
High-strength teeth or grooves for secure connections.
Durable materials to withstand heavy loads and stresses.
Compact design to minimize space requirements.
Easily replaceable components for reduced maintenance costs.
How To Use Spline Shaft
Ensure proper installation and alignment of the spline shaft.
Apply a suitable lubricant to reduce wear and tear on the teeth or grooves.
Regularly inspect the shaft for signs of wear or damage, replacing it as needed.
How Spline Shaft Is Manufactured
The manufacturing process of spline shafts involves several stages, including material selection and cutting, tooth or groove formation, and surface finishing.
Technical Specification Of Spline Shaft
Material:
Steel (Alloy or Carbon)
Length:
400mm to 1200mm
Diameter:
20mm to 100mm
Finish:
Machined or Ground Surface
The specifications of the spline shaft, including material, length, diameter, and finish, are critical in ensuring its performance and longevity. The selection of a suitable material depends on the application and environmental conditions, while the length and diameter must be carefully matched to meet specific design requirements. A machined or ground surface finish can provide improved accuracy and reduced wear.
Description Of Spline Shaft
A spline shaft is a type of shaft that features a series of teeth or grooves, providing a secure connection between the shaft and other components. Its design allows for increased strength and durability compared to standard shafts.
Related Products & Synonyms Of Spline Shaft
The related products to spline shaft include gearboxes, speedometers, and industrial machinery parts. The synonyms for spline shaft are splined shaft.
