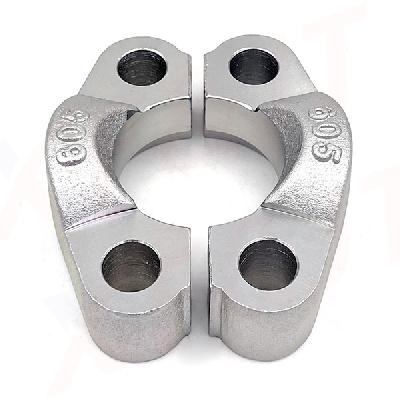

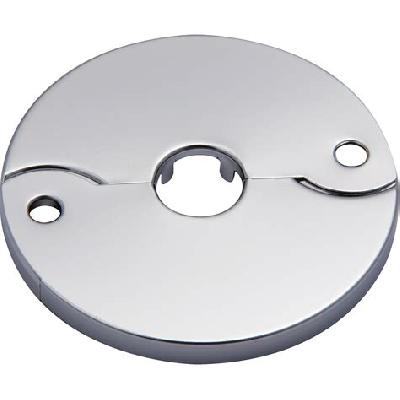

Split flange is a type of pipe fitting used to connect two pipes or equipment together. It allows for easy installation and removal without the need for welding, making it a popular choice in various industrial applications.
Where To Use Split Flange
Pipeline systems, such as oil and gas pipelines
Industrial process piping systems
Power plant piping systems
Chemical processing plants
Key Features Of Split Flange
Easy installation and removal
No welding required
High pressure rating
Wide range of sizes available
Available in various materials, such as steel, cast iron, and plastic
How To Use Split Flange
Ensure the split flange is properly aligned with the pipe or equipment
Apply a small amount of lubricant to the gasket surface
Insert the split flange onto the pipe or equipment and tighten securely
Verify the connection is leak-free and secure
How Split Flange Is Manufactured
Split flanges are manufactured through a process of casting, machining, and assembly. The raw materials are first cast into the required shape, then machined to precise dimensions. Finally, the split flange is assembled with a gasket and other necessary components.
Technical Specification Of Split Flange
Material:
Steel (ASTM A105)
Size:
1-1/2" to 24"
Pressure Rating:
Up to 2500 psi (172 bar)
Facing Type:
Flat face, raised face (RF), or ring type joint (RTJ)
Bolt Circle Diameter:
Varies depending on size and pressure rating
The technical specifications of a split flange include its material, size, pressure rating, facing type, and bolt circle diameter. The choice of material depends on the application and environment in which the split flange will be used. The size of the split flange must match the pipe or equipment it is connecting to ensure a secure and leak-free connection.
Description Of Split Flange
A split flange is a type of pipe fitting that allows for easy installation and removal without the need for welding. It consists of two halves that are separated by a gasket, which provides a tight seal when the two halves are brought together. Split flanges are commonly used in industrial applications where pipes or equipment need to be connected quickly and easily.
