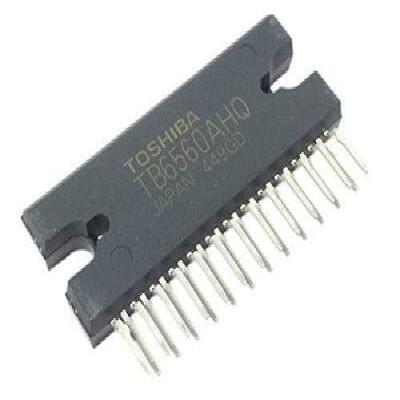

A stepper motor driver IC is a semiconductor device that controls the operation of a stepper motor, which is an electric motor that moves in discrete steps. The driver IC receives digital signals and converts them into electrical pulses to drive the stepper motor.
Where To Use Stepper Motor Driver Ic
Stepper motor driver ICs are used in a variety of applications, including robotics, CNC machines, printers, and medical equipment. They are ideal for use in situations where precise control over the motor is required.
Key Features Of Stepper Motor Driver Ic
High accuracy and precision
Low power consumption
Compact design
High current handling capability
Resistance to electromagnetic interference
How To Use Stepper Motor Driver Ic
Connect the driver IC to a microcontroller or other digital signal source
Configure the driver IC with the desired motor parameters
Apply power to the driver IC and connect it to the stepper motor
Send digital signals to the driver IC to control the stepper motor
How Stepper Motor Driver Ic Is Manufactured
The manufacturing process for stepper motor driver ICs typically involves several steps, including wafer preparation, doping, photolithography, and packaging.
Technical Specification Of Stepper Motor Driver Ic
Operating Voltage:
5V - 15V
Output Current:
1A - 3A
Maximum Step Frequency:
100kHz - 200kHz
Protection Features:
Overcurrent protection, Overvoltage protection
The technical specifications of a stepper motor driver IC are critical in determining its suitability for a particular application. The operating voltage range, output current capacity, maximum step frequency, and protection features all play important roles in ensuring reliable operation.
Description Of Stepper Motor Driver Ic
A stepper motor driver IC is a semiconductor device that controls the operation of a stepper motor, which is an electric motor that moves in discrete steps.
Related Products & Synonyms Of Stepper Motor Driver Ic
The related products to stepper motor driver ICs include microcontrollers, motor drivers, and power supplies. The synonyms of stepper motor driver IC are stepping motor controller, step motor driver, and microstepping driver.
