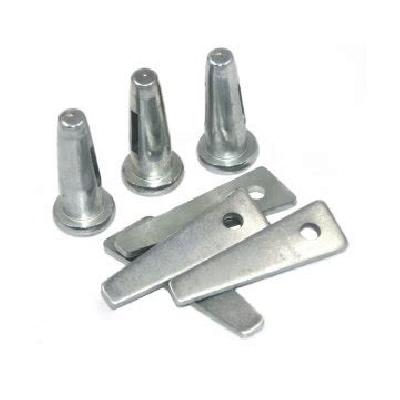

A stub pin is a type of fastener used in various industrial applications, particularly in the manufacturing and assembly processes. It is a short, thick pin with a rounded or flat head, designed to hold components together.
Where To Use Stub Pin
Stub pins are commonly used in:
Assembly and disassembly of machinery
Holding components together during welding or other manufacturing processes
Precision engineering applications where high accuracy is required
Key Features Of Stub Pin
Short length, typically between 1-10 mm
Thick diameter, usually between 2-8 mm
Rounded or flat head for easy assembly and disassembly
Material options include steel, brass, or other metals
How To Use Stub Pin
Choose the correct size and material for your application
Clean the surface where the stub pin will be inserted
Insert the stub pin slowly and carefully to avoid damage or injury
Tighten securely, but avoid overtightening which may damage the component
How Stub Pin Is Manufactured
Stub pins are manufactured through a combination of metalworking processes, including cutting, forming, and heat treatment. The material is first cut to the required length, then shaped into the desired form using dies or other tools. Finally, the stub pin is heat-treated to achieve the necessary hardness and durability.
Technical Specification Of Stub Pin
Diameter (mm)
2-8
Length (mm)
1-10
Material
Steel, Brass, or other metals
Finish
Plated or coated for corrosion resistance
Tolerance
±0.01 mm
The technical specifications of stub pins are critical to ensure accurate assembly and reliable performance in industrial applications. The chosen diameter, length, material, finish, and tolerance must be carefully selected based on the specific requirements of the project.
Description Of Stub Pin
A stub pin is a versatile fastener used in various industrial applications, characterized by its short length and thick diameter.
Related Products & Synonyms Of Stub Pin
Stub pins are often used in conjunction with other fasteners, such as screws or rivets. Some related products include:
