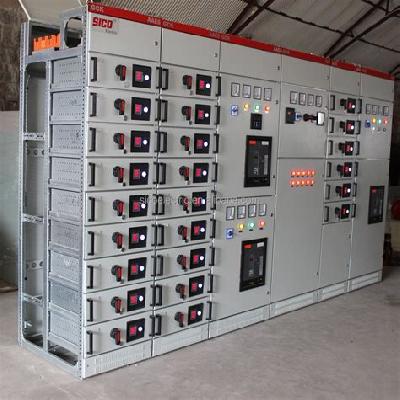

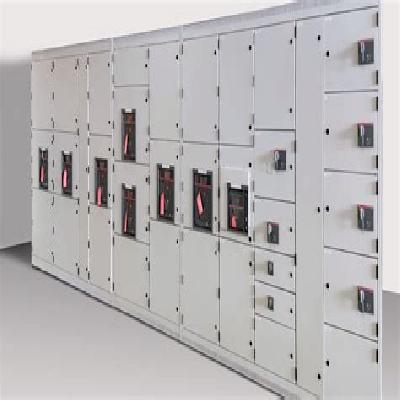

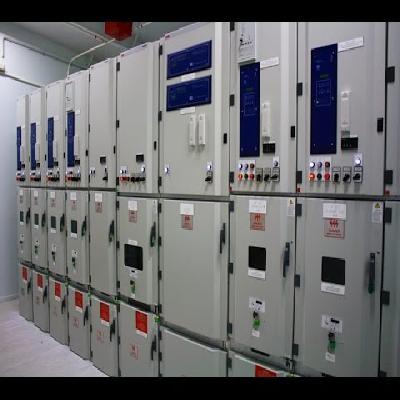

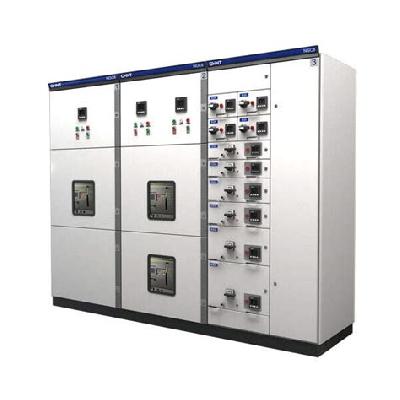

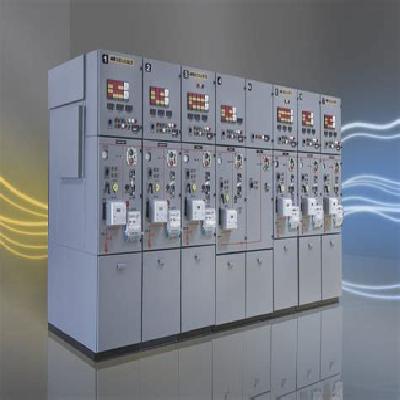

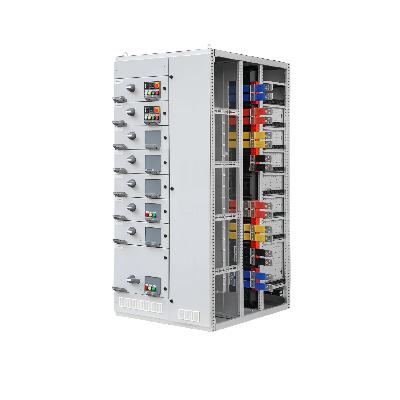

Switchgear panels are a type of electrical distribution equipment that is used to control and protect electrical circuits in industrial and commercial settings. They are designed to handle high voltage and current ratings, making them ideal for use in applications where reliability and safety are paramount.
Where To Use Switchgear Panels
Switchgear panels can be used in a variety of settings, including:
Industrial facilities
Commercial buildings
Power plants
Transmission and distribution substations
Key Features Of Switchgear Panels
High voltage and current ratings
Reliable operation under extreme conditions
Durable construction for long lifespan
Easy maintenance and repair
How To Use Switchgear Panels
Identify the required voltage and current ratings for the application
Select a switchgear panel that meets or exceeds those requirements
Install the switchgear panel according to manufacturer's instructions
Test and commission the switchgear panel before putting it into service
How Switchgear Panels Is Manufactured
Switchgear panels are manufactured using a combination of advanced materials and techniques, including:
Metallic enclosure construction
Insulation and wiring techniques
Electrical testing and certification
Technical Specification Of Switchgear Panels
Voltage Rating:
220-660 V
Frequency:
50/60 Hz
Current Rating:
630-2500 A
Number of Phases:
1-3 phases
Main Busbar Rating:
630-2500 A
Material:
Stainless steel, aluminum
Weight:
50-200 kg
The technical specification of switchgear panels is designed to meet the requirements of industrial and commercial applications, providing a reliable and efficient means of controlling and protecting electrical circuits.
Description Of Switchgear Panels
Switchgear panels are designed to provide a reliable and efficient means of controlling and protecting electrical circuits in industrial and commercial settings. They are constructed using advanced materials and techniques, including metallic enclosure construction, insulation and wiring techniques, and electrical testing and certification.
