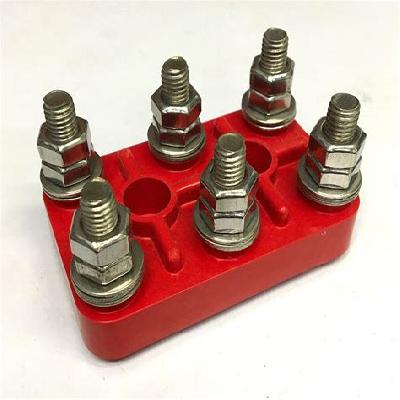

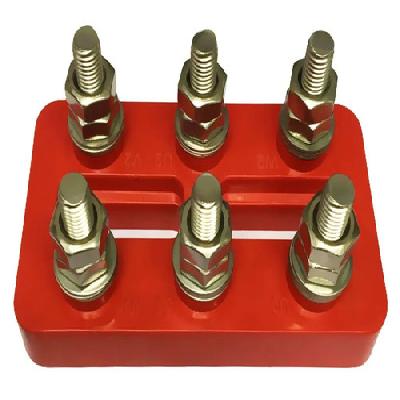

A terminal plate is a crucial component in electrical and electronics systems, used to provide a secure connection between wires or cables and the device or equipment they are connected to. It serves as an interface point for electrical connections, ensuring efficient power transmission while minimizing risks associated with overheating or short circuits.
Where To Use Terminal Plate
Electric motors and generators for industrial applications.
Pneumatic systems, hydraulic systems, and other machinery requiring electrical connections.
High-power equipment such as transformers, switchgear, and circuit breakers.
Industrial control panels and cabinets.
Key Features Of Terminal Plate
Durable construction to withstand harsh environments and high currents.
Easy to install with a secure, reliable connection.
Designed for specific current ratings to match the requirements of various applications.
Available in different materials (e.g., copper, aluminum) to suit diverse needs.
How To Use Terminal Plate
Identify the correct terminal plate for your application based on current rating and material requirements.
Inspect the plate for damage or wear before installation.
Connect wires or cables securely to the terminals, following proper safety procedures.
Verify that all connections are tight and secure after installation.
How Terminal Plate Is Manufactured
The manufacturing process involves several stages, including material selection and cutting, terminal formation, and assembly. Each stage requires careful quality control to ensure the final product meets industry standards.
Technical Specification Of Terminal Plate
Material:
Copper
Thickness:
2.5 mm
Length:
10 cm
Number of Terminals:
5
Current Rating:
30 A
The specifications outlined above are crucial for ensuring the terminal plate functions effectively and safely in its intended application. It is essential to choose a terminal plate with the correct material, thickness, length, number of terminals, and current rating to match specific requirements.
Description Of Terminal Plate
A terminal plate is a critical component in electrical and electronics systems, used to provide secure connections between wires or cables and devices or equipment.
