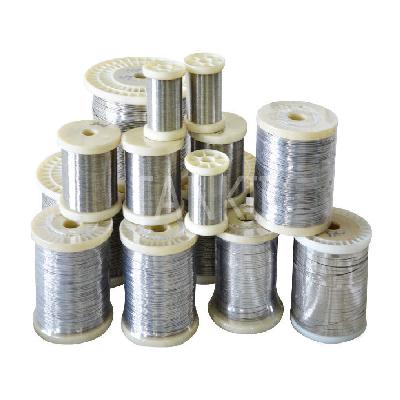

Thermocouple wires are a type of electrical wire used to measure temperature in various industrial applications. They consist of two dissimilar metals joined together at one end, which produces a small voltage when heated or cooled. This voltage is proportional to the temperature difference between the two metals, allowing for accurate temperature measurement.
Where To Use Thermocouple Wires
Industrial processes such as temperature monitoring in furnaces, ovens, and kilns.
Petrochemical plants for measuring temperature in pipes and equipment.
Nuclear power plants for monitoring reactor temperatures.
Key Features Of Thermocouple Wires
High accuracy and reliability in temperature measurement.
Durable construction with resistance to chemicals, abrasion, and high temperatures.
Flexible design for easy installation and connection.
How To Use Thermocouple Wires
Connect the thermocouple wire to a temperature measuring device or instrument.
Ensure proper insulation and protection from environmental factors.
Maintain accurate records of temperature readings for quality control and process optimization.
How Thermocouple Wires Is Manufactured
Thermocouple wires are manufactured using a high-temperature process that involves joining two dissimilar metals together at one end. The resulting wire is then insulated and protected with a durable coating to withstand harsh environments.
Technical Specification Of Thermocouple Wires
Temperature Range:
-200°C to 1800°C
Conductor Material:
Copper and constantan
Outer Diameter:
0.5mm to 1.5mm
Insulation Material:
Silicone and fiberglass
The technical specifications of thermocouple wires are critical to ensure accurate temperature measurement in various industrial applications. The temperature range, conductor material, outer diameter, and insulation material all contribute to the wire's performance and durability. By selecting the appropriate thermocouple wire for a specific application, users can achieve precise temperature readings and maintain process control.
Description Of Thermocouple Wires
Thermocouple wires are a type of electrical wire used to measure temperature in various industrial applications. They consist of two dissimilar metals joined together at one end, which produces a small voltage when heated or cooled.
Related Products & Synonyms Of Thermocouple Wires
Thermocouple wires are related to other temperature-measuring devices such as thermistors, RTDs (Resistance Temperature Detectors), and infrared sensors.

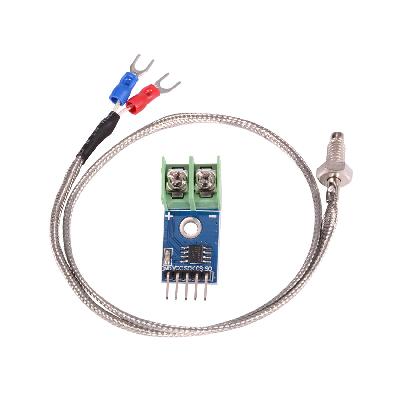

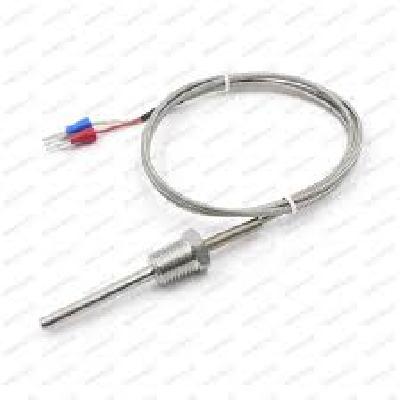

Synonyms for thermocouple wires include K-type thermocouple wire and Type J thermocouple wire. These wires are designed for specific temperature ranges and applications.
