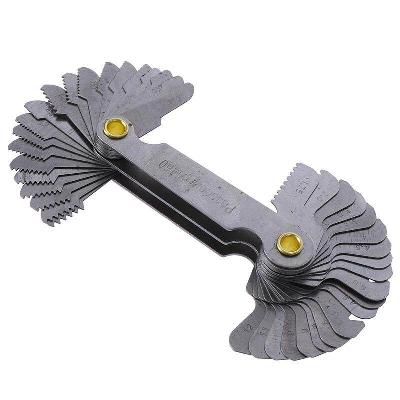

Thread gauge is a precision measuring instrument used to measure the size and pitch of threads on screws, bolts, and other threaded fasteners.
Where To Use Thread Gauge
Thread gauge is commonly used in industries such as aerospace, automotive, and manufacturing to ensure accurate thread measurements.
Key Features Of Thread Gauge
Accurate measurements with high precision
Durable and long-lasting construction
Easy to use and handle
Compact size for easy storage
How To Use Thread Gauge
Place the thread gauge on the threaded fastener
Rotate the gauge until it fits snugly onto the threads
Read the measurement from the gauge's scale
Repeat for multiple measurements as needed
How Thread Gauge Is Manufactured
Thread gauges are typically manufactured using precision machinery and high-quality materials to ensure accurate and durable measurements.
Technical Specification Of Thread Gauge
Measurement Range:
Up to 10 mm
Resolution:
0.01 mm
Accuracy:
±0.02 mm
Gauge Length:
50 mm
Material:
Stainless Steel
Weight:
100 g
Dimensions:
50 x 20 mm
The technical specifications of the thread gauge ensure accurate and precise measurements, making it an essential tool for various industries. The measurement range allows for measuring threads up to 10 mm, with a resolution of 0.01 mm and accuracy of ±0.02 mm. The gauge length is 50 mm, made from durable stainless steel material, weighing 100 g, and dimensions of 50 x 20 mm.
Description Of Thread Gauge
The thread gauge is a precision instrument designed to measure the size and pitch of threads on screws, bolts, and other threaded fasteners.
Related Products & Synonyms Of Thread Gauge
Thread gauges are often used in conjunction with other precision instruments, such as thread pitch gauges, Npt gauges, Acme gauges, centre gauges, screw cutting gauges, and BSPT gauges.
Synonyms for the thread gauge include trapezoidal gauge, unified gauge, thread gage, unified gage, and unified thread gauge.
