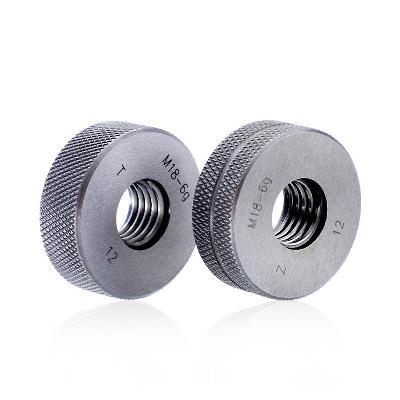

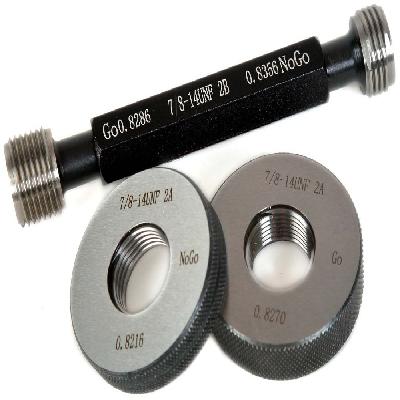

Thread ring gages are precision measuring tools used to verify the size and thread type of internal threads on parts, machinery, or equipment.
Where To Use Thread Ring Gages
Thread ring gages are used in various industries such as aerospace, automotive, and oil & gas to ensure accurate thread measurement for parts and equipment.
Key Features Of Thread Ring Gages
High precision for accurate measurements
Durable construction to withstand regular use
Easy to handle and store
Available in various thread types and sizes
How To Use Thread Ring Gages
Inspect the internal thread of a part or equipment
Select the appropriate thread ring gage for the measurement
Insert the thread ring gage into the thread and turn it until it stops
Verify the measurement on the thread ring gage

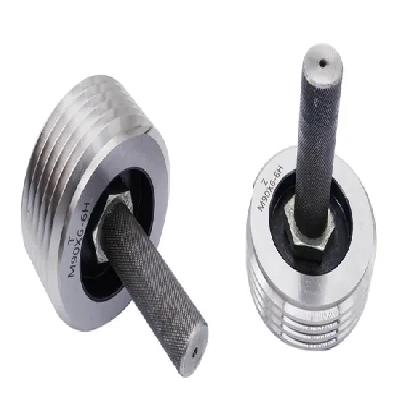

How Thread Ring Gages Is Manufactured
Thread ring gages are manufactured using high-quality materials and precision machining techniques to ensure accuracy and durability.
Technical Specification Of Thread Ring Gages
Specification
Value
Material
Stainless Steel
Brand
GageMark
Hardness
58-62 HRC
Thread Type
Metric/Inch
Thread Size
M3-M20, 1/8"-1 1/2"
The technical specification of thread ring gages ensures that they meet the required standards for precision and accuracy in measuring internal threads. The specifications include material, brand, hardness, thread type, and thread size, which are crucial factors in ensuring the accuracy and durability of the tool.
Description Of Thread Ring Gages
Thread ring gages are precision tools used to measure the size and thread type of internal threads on parts, machinery, or equipment.
Related Products & Synonyms Of Thread Ring Gages
Thread ring gages are related to other precision measuring tools such as thread gauges and ring gauges. The synonyms of thread ring gages include thread ring gauge, thread ring gage, and thread ring gauges.
