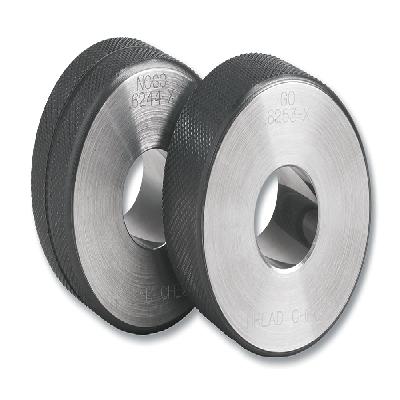

A Thread Ring Gauge is a precision instrument used to measure the internal dimensions of threads, ensuring accurate fitment and quality control in various industrial applications.
Where To Use Thread Ring Gauge
Thread Ring Gauges are widely used in industries such as aerospace, automotive, and manufacturing to measure thread dimensions on bolts, screws, and other fasteners.
Key Features Of Thread Ring Gauge
High precision measurement capabilities
Durable construction for long-lasting performance
Easy to use and interpret results
Accurate measurements ensure quality control in production processes
How To Use Thread Ring Gauge
Place the gauge on the thread to be measured, ensuring it is centered and secure
Use a torque wrench or other device to apply pressure, if necessary, for accurate measurement
Read the measurement directly from the gauge or use a measuring tool for precise results
Record the measurement for quality control purposes or further inspection
How Thread Ring Gauge Is Manufactured
Thread Ring Gauges are manufactured using high-precision machining techniques, involving multiple stages of cutting and grinding to achieve precise dimensional accuracy.
Technical Specification Of Thread Ring Gauge
Material:
Stainless Steel
Brand:
Precision Instruments Inc.
Hardness:
58-62 HRC
Thread Type:
Metric and Inch
Thread Size:
M3-M64 and 1/16-1 Inch
The Technical Specification of the Thread Ring Gauge is designed to provide accurate measurements in various thread sizes and types, ensuring precise fitment and quality control in industrial applications.
