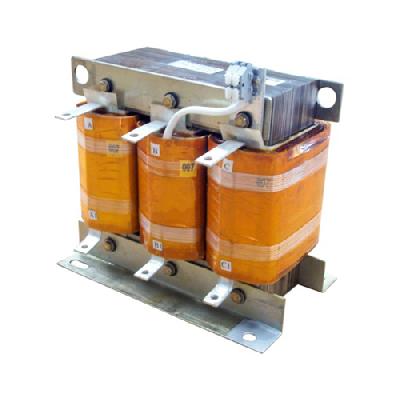

Three phase reactors are industrial equipment designed to regulate voltage and current in three-phase electrical systems. They work by introducing a reactive component to the system, which helps stabilize the voltage and reduce harmonic distortion.
Where To Use Three Phase Reactors
Three phase reactors are commonly used in industrial applications such as power generation, transmission and distribution, and industrial processing. They are particularly useful in situations where voltage stability is critical, such as in high-power drives, welding equipment, and rectifier systems.
Key Features Of Three Phase Reactors
Stable voltage regulation
Reduced harmonic distortion
Improved power factor correction
Compact and robust design
High-temperature rating for industrial environments
How To Use Three Phase Reactors
Select the correct reactor size and type for your application based on voltage, current, and frequency requirements.
Ensure proper mounting and installation to maintain stability and safety.
Monitor and adjust settings as needed to optimize performance.
How Three Phase Reactors Is Manufactured
Three phase reactors are manufactured using high-quality materials and strict quality control processes to ensure reliable performance in demanding industrial environments.
Technical Specification Of Three Phase Reactors
Voltage Range:
3-480V
Current Rating:
10-500A
Inductance Range:
100mH-10H
Frequency Range:
45-65Hz
Enclosure Type:
IP66, NEMA 1
The technical specifications of three phase reactors are designed to meet the demands of various industrial applications. The voltage range is typically between 3-480V, with a current rating that can vary from 10-500A. The inductance range can be anywhere from 100mH-10H, and the frequency range is usually between 45-65Hz. The enclosure type can be IP66 or NEMA 1, depending on the level of protection required.
Description Of Three Phase Reactors
Three phase reactors are industrial equipment designed to regulate voltage and current in three-phase electrical systems. They work by introducing a reactive component to the system, which helps stabilize the voltage and reduce harmonic distortion.
Related Products & Synonyms Of Three Phase Reactors
Related products include three-phase transformers, power factor correction capacitors, and harmonic filters. The synonyms for three phase reactors are 3 phase reactor.
