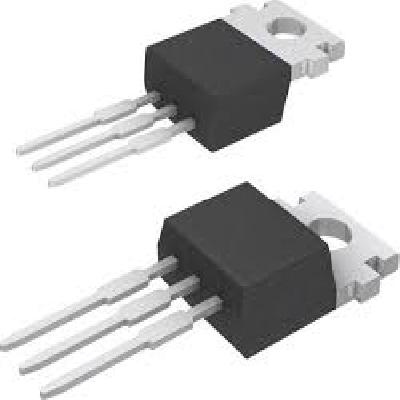

A Triac module is an electronic component used in various applications to control and regulate electrical currents. It is essentially a thyristor-based device that operates as a bistable switch, allowing it to conduct current in both directions.
Where To Use Triac Module
Triac modules are commonly used in household and industrial applications, such as lighting control systems, motor speed controllers, and power supplies. They can be found in a wide range of devices, from simple appliances to complex machinery.
Key Features Of Triac Module
High current handling capacity
Low power consumption
Wide range of operating voltages
Compact and lightweight design
Reliable and durable construction
How To Use Triac Module
Connect the triac module to a power source and control circuit
Adjust the operating voltage and current limits according to the application requirements
Maintain proper cooling and ventilation for optimal performance
Regularly inspect and replace worn-out or damaged components
How Triac Module Is Manufactured
The manufacturing process for triac modules involves several stages, including semiconductor material selection and processing, device assembly and testing, and final packaging and quality control.
Technical Specification Of Triac Module
Voltage Rating (V)
-200 to +400 V
Current Capacity (A)
10 A continuous, 20 A peak
Control Voltage (V)
-10 to +40 V
Mount Type
Through-hole, surface mount
Isolation Type
Galvanic isolation
The technical specification of the triac module includes its voltage rating, current capacity, control voltage, mount type, and isolation type. The device is designed to operate within a wide range of voltages and currents, making it suitable for various applications. The compact design and lightweight construction allow for easy mounting and installation in tight spaces.
Description Of Triac Module
The triac module is a robust and reliable component designed for high-performance applications. Its thyristor-based construction allows for efficient current control and regulation, making it an ideal choice for lighting control systems, motor speed controllers, and power supplies.
Related Products & Synonyms Of Triac Module
The triac module is related to other electronic components such as thyristors, silicon-controlled rectifiers (SCRs), and power transistors. Synonyms for the triac module include the terms "thyristor-based switch" or "current regulator." These devices are often used in similar applications and have comparable specifications.
