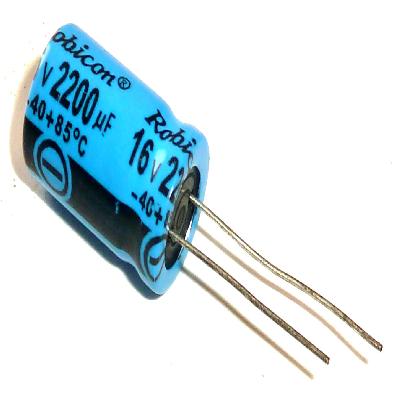

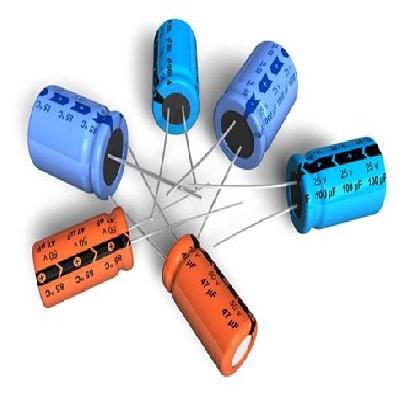

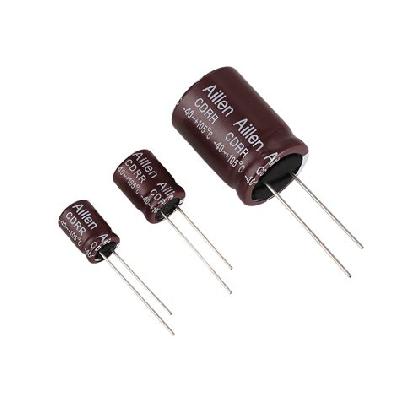

A capacitor is a passive electronic component that stores energy in the form of an electric field. It consists of two conductive plates separated by a dielectric material, which can be a vacuum, air, or a solid material such as ceramic, glass, or mica.
Where To Use Capacitor
Capacitors are widely used in various applications, including electronic circuits, power supplies, filters, and energy storage devices. They can be found in a range of products, from simple consumer electronics to complex industrial equipment.
Key Features Of Capacitor
Stores energy in the form of an electric field
Consists of two conductive plates separated by a dielectric material
Used in electronic circuits, power supplies, filters, and energy storage devices

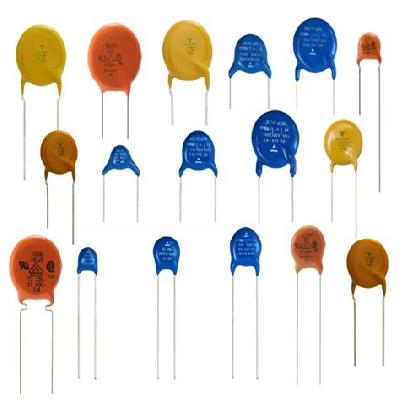

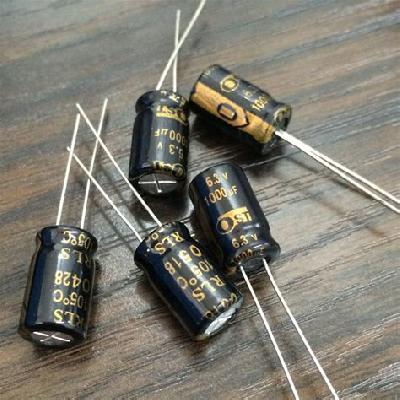

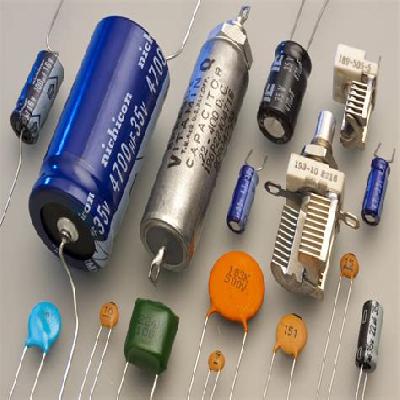

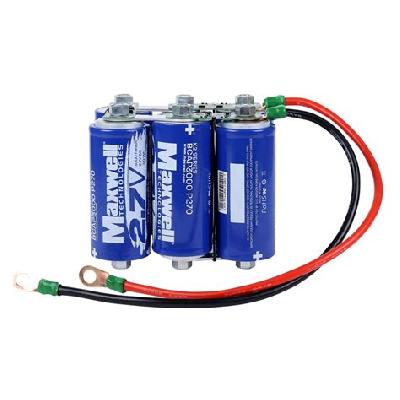

Available in various types, including ceramic, film, electrolytic, and supercapacitors
How To Use Capacitor
Connect the capacitor in series or parallel with other components to filter or regulate voltage
Use the capacitor to store energy for later use, such as in power supplies or energy harvesting devices
Employ the capacitor as a decoupling device to reduce noise and ripples in electronic circuits
How Capacitor Is Manufactured
The manufacturing process of capacitors involves several steps, including material selection and preparation, plate formation, dielectric insertion, assembly, and testing.
Technical Specification Of Capacitor
Capacitance Range:
10 nF to 1 ?F
Voltage Rating:
50 V to 1000 V
Capacitor Type:
Ceramic, Film, Electrolytic, Supercapacitors
Tolerance:
±5%, ±10%
The technical specifications of capacitors vary depending on the application and desired performance characteristics. In general, capacitors are chosen based on their capacitance value, voltage rating, and tolerance. The capacitor type is also an important consideration, as different types have distinct advantages and disadvantages.
Description Of Capacitor
A capacitor is a passive electronic component that stores energy in the form of an electric field. It consists of two conductive plates separated by a dielectric material, which can be a vacuum, air, or a solid material such as ceramic, glass, or mica.
Related Products & Synonyms Of Capacitor

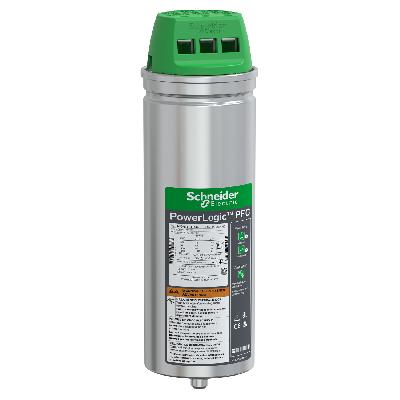

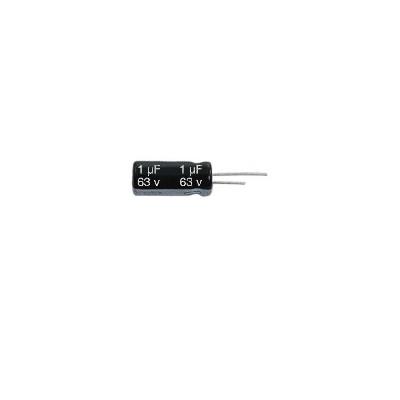

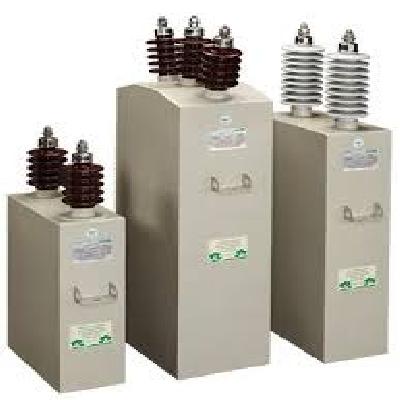

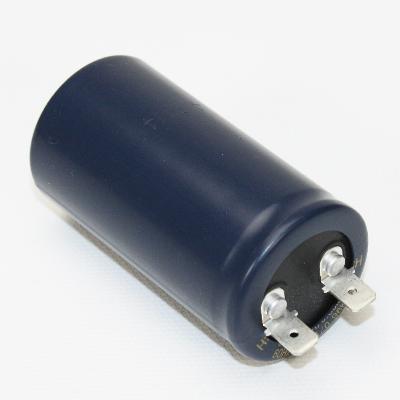

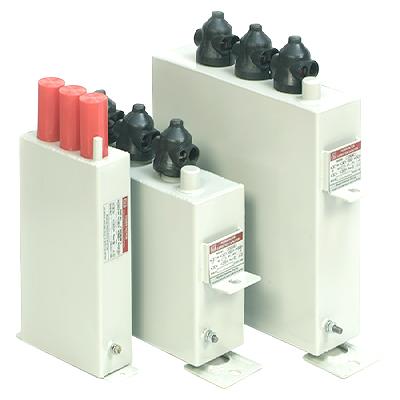

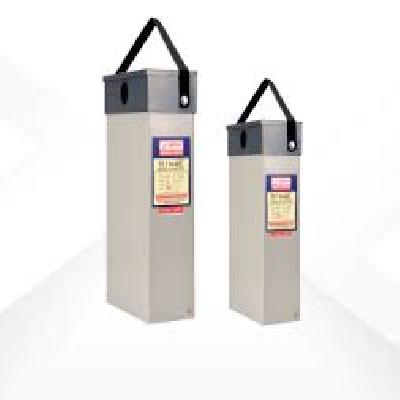

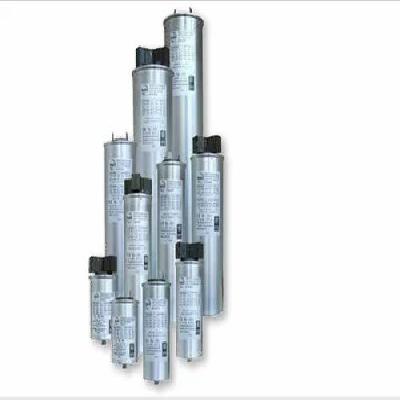

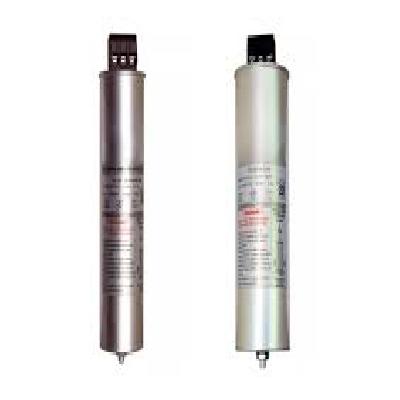

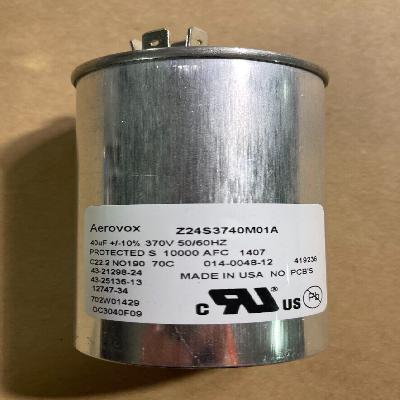

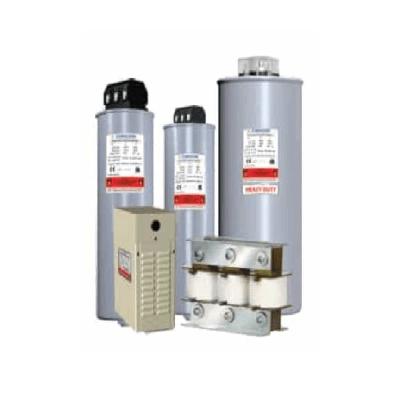

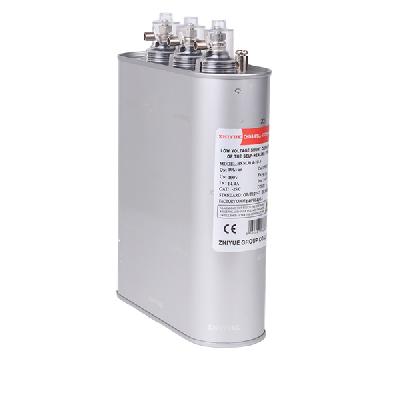

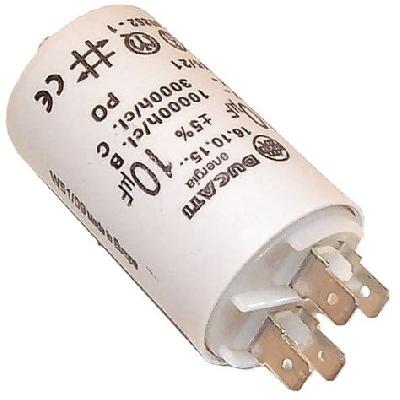

Some related products to capacitors include power capacitors, fan capacitors, AC capacitors, motor run capacitors, and electrolytic capacitors. Synonyms for capacitors include electrical condensers and energy storage capacitors.

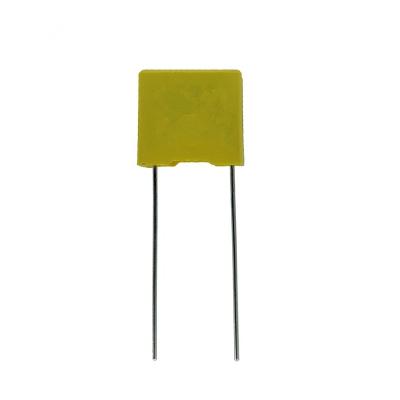

_13679_1.jpg)
