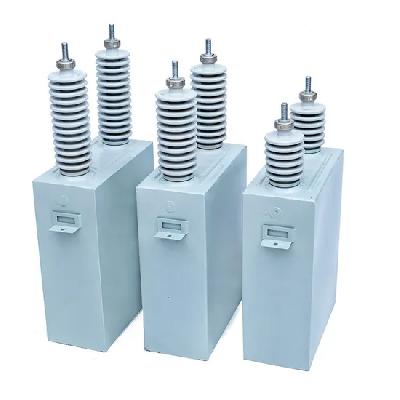

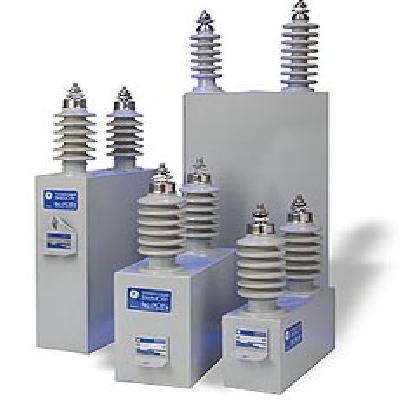

High voltage capacitors are electronic components designed to store electrical energy in a compact and efficient manner. They are used to filter, regulate, and stabilize high voltage signals in various industrial and commercial applications.
Where To Use High Voltage Capacitors
High voltage capacitors are commonly used in power electronics, motor control systems, and high-frequency applications. They can be found in various industries such as renewable energy, industrial automation, and aerospace.
Key Features Of High Voltage Capacitors
High capacitance range (nF to ?F)
Wide voltage rating (up to several kV)
Low leakage current and high insulation resistance
High stability and reliability
Compact size and low weight
How To Use High Voltage Capacitors
Choose the correct capacitor value and type based on application requirements
Select a capacitor with suitable voltage rating and insulation level
Mount the capacitor properly to ensure good thermal conductivity and electrical connection
Carefully connect the capacitor to the circuit and verify its operation
How High Voltage Capacitors Is Manufactured
The manufacturing process of high voltage capacitors involves several stages, including raw material selection, winding, and assembly. The capacitor's dielectric material is carefully selected to ensure optimal insulation properties and stability.
Technical Specification Of High Voltage Capacitors
Capacitance Range:
10nF to 1?F
Voltage Rating:
Up to 20kV
Capacitor Type:
Film, Ceramic, Metalized
Tolerance:
±5%, ±10%
The technical specification of high voltage capacitors is critical in ensuring reliable operation and optimal performance in various applications. The capacitor's capacitance range, voltage rating, type, and tolerance must be carefully selected to match the specific requirements of the circuit or system.
Description Of High Voltage Capacitors
High voltage capacitors are designed to store electrical energy in a compact and efficient manner, making them ideal for various industrial and commercial applications.
Related Products & Synonyms Of High Voltage Capacitors

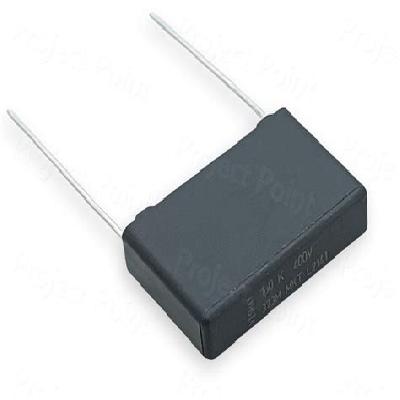

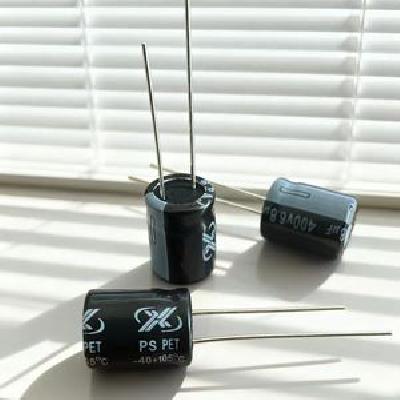

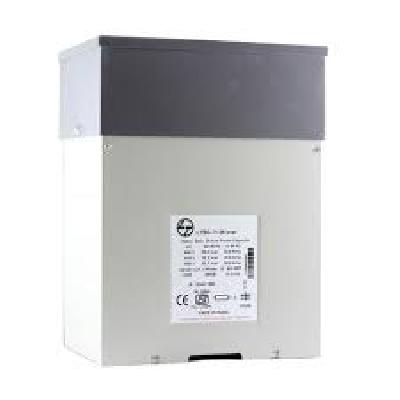

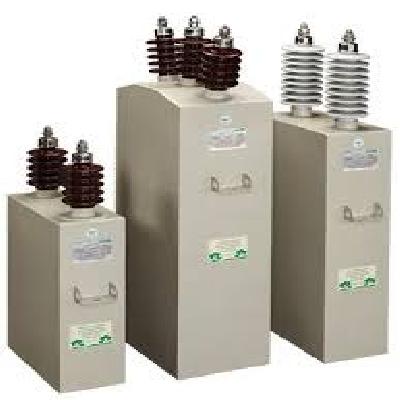

Some related products of high voltage capacitors include:
