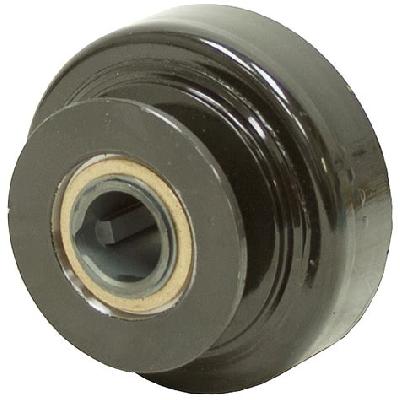

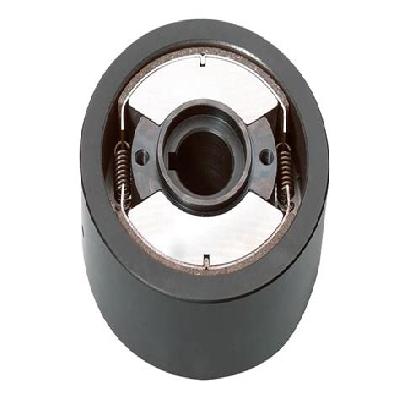

Centrifugal clutches are mechanical devices used to transmit power from a driving source, such as an engine or motor, to a driven load, like a gear or pulley. They operate on the principle of centrifugal force, where a rotating shaft or arm is connected to a series of levers or links that engage and disengage the clutch.
Where To Use Centrifugal Clutches
Centrifugal clutches are commonly used in various industrial applications, including:
Automotive transmission systems
Power take-off (PTO) systems for agricultural and construction equipment
Industrial machinery, such as conveyors and pumps
Aerospace applications, like aircraft engines and gearboxes
Key Features Of Centrifugal Clutches
High torque capacity and smooth engagement
Low backlash and high accuracy
Compact design with reduced weight and size
Long lifespan and minimal maintenance required
Durable materials and construction for harsh environments
How To Use Centrifugal Clutches
Select the correct clutch size and type for the application
Ensure proper installation and alignment of the clutch
Maintain recommended lubrication and maintenance schedules
Monitor clutch performance and adjust as needed
Replace worn or damaged clutches promptly
How Centrifugal Clutches Is Manufactured
The manufacturing process for centrifugal clutches involves several stages, including:
Design and prototyping
Machining and tooling
Casting or forging of components
Assembly and testing
Quality control and packaging
Technical Specification Of Centrifugal Clutches
Bore Diameter (mm)
50-200
Outer Diameter (mm)
100-300
Width (mm)
20-80
Torque Capacity (Nยทm)
100-5000
The technical specifications of centrifugal clutches are critical in determining their suitability for a particular application. The bore diameter, outer diameter, and width of the clutch determine its size and mounting requirements, while the torque capacity indicates its ability to transmit power. In addition to these parameters, other factors such as the material and construction of the clutch, as well as its operating temperature range, must also be considered. By selecting a centrifugal clutch with the correct specifications for the application, users can ensure reliable and efficient operation.
Description Of Centrifugal Clutches

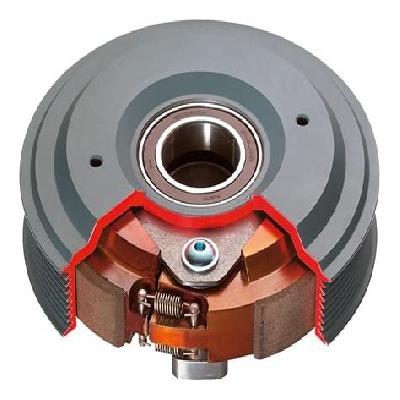

Centrifugal clutches are designed to provide a smooth and reliable transfer of power from a driving source to a driven load. They operate on the principle of centrifugal force, where a rotating shaft or arm is connected to a series of levers or links that engage and disengage the clutch. The clutch is typically mounted in a housing or cover, which provides protection from dust, dirt, and other contaminants.
Related Products & Synonyms Of Centrifugal Clutches
The following products are related to centrifugal clutches:
Automotive clutches
Industrial clutches
Aerospace clutches
The following terms are synonymous with centrifugal clutches:
