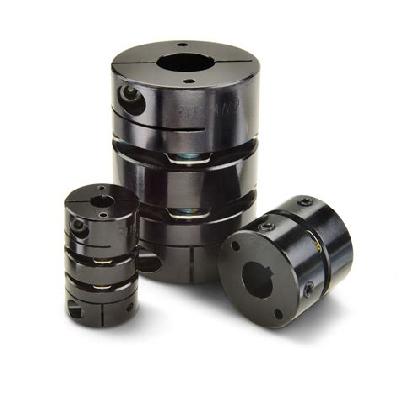

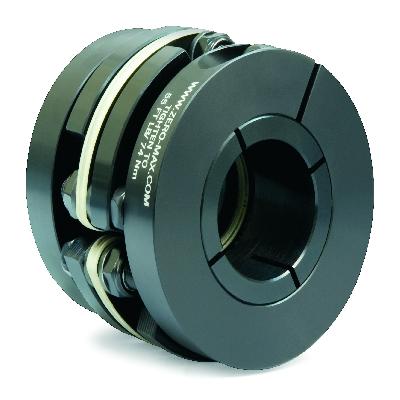

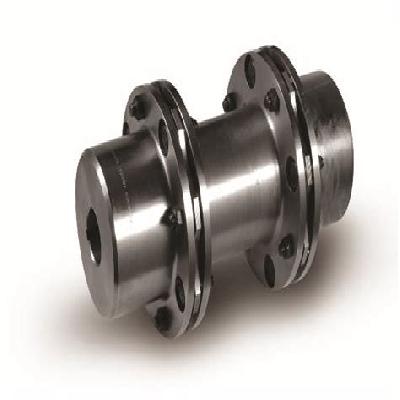

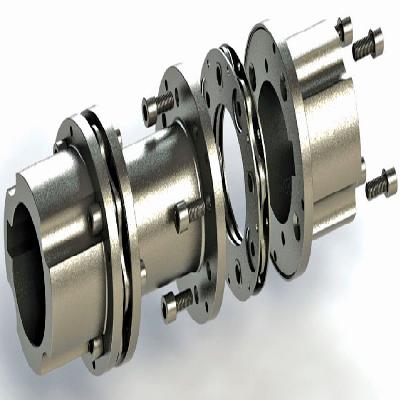

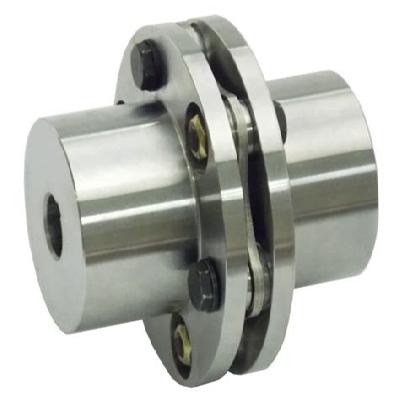

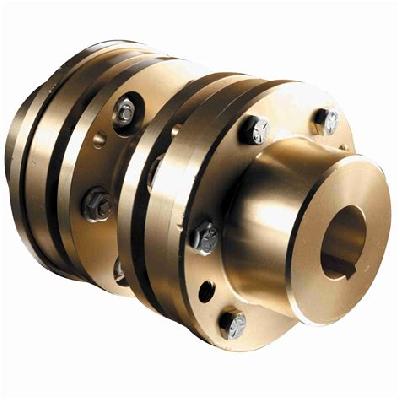

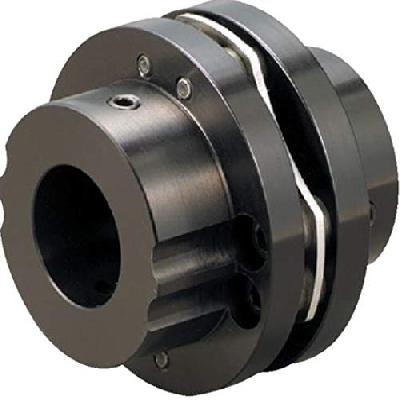

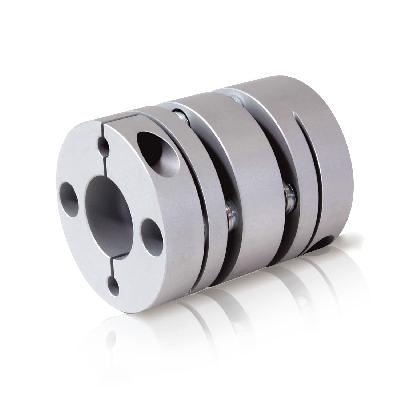

Disc coupling is a type of mechanical power transmission device used to connect two rotating shafts together, allowing for the transfer of torque between them while absorbing some degree of misalignment or vibration between the shafts.
Where To Use Disc Coupling
Disc couplings are commonly used in industrial applications where high torque transmission is required, such as in heavy machinery and equipment.
They can also be found in power generation, oil and gas, and other industries that require reliable and efficient power transmission.
Key Features Of Disc Coupling
High torque transmission capacity
Ability to absorb misalignment and vibration
Compact design for easy installation
Long lifespan with minimal maintenance required
How To Use Disc Coupling
First, ensure the disc coupling is properly aligned with the two shafts it will be connecting.
Next, tighten the bolts or screws that secure the disc coupling to the shafts in a star pattern to avoid over-tightening and prevent damage to the device.
Finally, verify that the disc coupling is securely fastened and functioning properly before putting it into operation.
How Disc Coupling Is Manufactured
Disc couplings are typically manufactured using high-quality materials such as steel or stainless steel, which provide excellent strength and durability.
Technical Specification Of Disc Coupling
Torque Capacity:
up to 10,000 Nm
Bore Size:
from 20mm to 200mm
Temperature Range:
-40°C to 120°C
Thickness:
from 10mm to 50mm
Material Hardness:
up to 60 HRC
The technical specification of the disc coupling provides a clear understanding of its capabilities and limitations, allowing users to select the appropriate device for their specific application.
Description Of Disc Coupling
Disc couplings are designed to provide reliable and efficient power transmission in a variety of industrial applications.
Related Products & Synonyms Of Disc Coupling
Some related products to disc couplings include gear couplings, shaft couplings, and universal joints.
Synonyms for disc coupling include disc clutch, disc drive, and torque transmitter.
