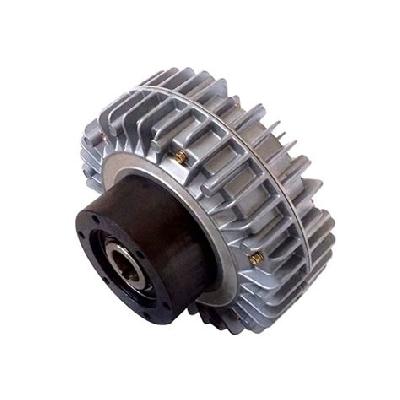

Magnetic particle clutches are mechanical devices that utilize magnetic fields to transmit torque between two rotating components. They consist of a rotor and a stator, which are separated by a gap filled with a ferromagnetic material. When an electric current is applied to the clutch, it generates a magnetic field that induces magnetization in the ferromagnetic material, allowing for frictionless transmission of rotational energy.
Where To Use Magnetic Particle Clutches
Magnetic particle clutches are widely used in various industrial applications where smooth and efficient power transmission is required. Some common uses include:
Automotive industry for gearboxes, transmissions, and differentials
Industrial machinery for conveyor belts, pumps, and fans
Aerospace industry for aircraft transmissions and other mechanical systems
Key Features Of Magnetic Particle Clutches
Frictionless power transmission with low energy loss
High torque capacity and reliability
Durable construction with minimal maintenance required
Compact design for easy integration into mechanical systems
Low heat generation during operation
How To Use Magnetic Particle Clutches
Select the appropriate clutch size and type based on application requirements
Mount the clutch to a rotating shaft using suitable bearings or mounts
Connect the clutch to an electric motor or other power source
Apply a DC voltage to the clutch coil to generate a magnetic field
The ferromagnetic material in the gap becomes magnetized, transmitting rotational energy to the rotor
How Magnetic Particle Clutches Is Manufactured
The manufacturing process of magnetic particle clutches involves several stages:
Material selection and procurement for the stator, rotor, and ferromagnetic material
Machining and assembly of the clutch components using precision tools and equipment
Applying a thin layer of insulation to the clutch coil and other electrical components
Assembling the clutch unit with all components properly secured
Testing the clutch for performance, torque capacity, and durability
Technical Specification Of Magnetic Particle Clutches
Bore Diameter:
50 mm
Outer Diameter:
120 mm
Width:
30 mm
Torque Capacity:
500 Nm
The technical specifications of magnetic particle clutches are critical in determining their performance and suitability for a particular application. The bore diameter, outer diameter, width, and torque capacity are essential parameters that need to be carefully considered when selecting the right clutch for a given use case.
Description Of Magnetic Particle Clutches
Magnetic particle clutches are highly reliable and efficient devices that offer frictionless power transmission with low energy loss. They consist of a stator, rotor, and ferromagnetic material separated by a gap. When an electric current is applied to the clutch, it generates a magnetic field that induces magnetization in the ferromagnetic material, allowing for smooth rotational energy transfer.
Related Products & Synonyms Of Magnetic Particle Clutches
Some related products of magnetic particle clutches include:
